Planetary Micro Mill
PULVERISETTE 7
premium linePlease note: For the Planetary Micro Mill PULVERISETTE 7 premium line, you require at least 2 grinding bowls of your choice and the corresponding number of grinding balls. The grinding bowl material must also be harder than the material to be ground. In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used. Please take note of the useful capacity, this is not identical with the bowl volume!
GRINDING BOWLS
-
Material data for grinding bowls / balls
Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material Agate SiO2 2.65 good soft to medium-hard samples Sintered corundum Al2O3 (99.7%) 3.8 fairly good medium-hard, fibrous samples Silicon nitride Si3N4 3.25 excellent abrasive samples, metal-free grinding Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples Hardened, stainless steel Fe – Cr 7.7 good hard, medium-hard, brittle samples Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples -
Recommended number of grinding balls per bowl
Grinding balls ≥ 5 mm
Recommended number of balls per bowlGrinding bowl/
Useful capacity (grinding material)20 ml
1 – 9 ml45 ml
3 – 20 ml80 ml
10 - 30 mlBalls diameter 20 mm 5 15 mm 7 10 10 mm 10 18 25 5 mm 80 180 250 Grinding balls ≤ 3 mm
Recommended ball mass per bowl in gramsGrinding bowl/
Useful capacity (grinding material)20 ml
1 – 9 ml45 ml
3 – 20 ml80 ml
10 - 30 mlMaterial Zirconium oxide 30 g 70 g 100 g Hardened, stainless steel 40 g 90 g 150 g Hardmetal tungsten carbide 80 g 200 g 300 g -
Additional Information
Grinding balls with diameter 3 mm and smaller must be weighed out. The above table provides you with the required mass per grinding bowl.
The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.
In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.
Please select 2 grinding bowls, which are offered in the sizes 20 ml, 45 ml and 80 ml to perfectly match your sample volume. The useful capacity of the grinding bowls can be found in the selection aid. All grinding bowls of the FRITSCH premium line are cased in stainless steel, have a label and the same inner diameter regardless of their volume.
For the best grinding results in each individual case, all grinding bowls are available in 6 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion.
GRINDING BOWLS 80 ML VOLUME

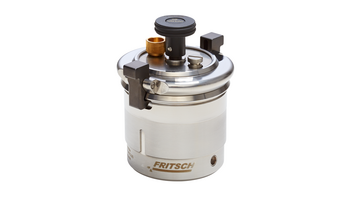

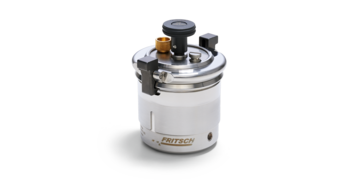

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 0.870 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 0.940 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Sintered corundum 1 – Al2O3 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Aluminium oxide – Al2O3 | 99.651 |
| Silicon oxide – SiO2 | 0.257 |
| Calcium oxide – CaO | 0.081 |
| Other | 0.011 |
| Physical and mechanical properties | |
| Density | 3.8 g/cm³ |
| Hardness | 18.000N/mm² (Vickers HV 0.5) |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 0.900 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Silicon nitride - Si3N4 |
| ISO/EN/DIN code | SNCB5 |
| Chemical composition | |
| Element | Share % |
| Al2 O3 Y2 O3 | 9 |
| Si3 N4 | 91 |
| Physical and mechanical properties | |
| Density | 3.25 g/cm³ |
| Hardness | 91.1 HRA |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 1.050 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 1.150 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 1.580 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BOWLS 45 ML VOLUME
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.930 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.990 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Sintered corundum 1 – Al2O3 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Aluminium oxide – Al2O3 | 99.651 |
| Silicon oxide – SiO2 | 0.257 |
| Calcium oxide – CaO | 0.081 |
| Other | 0.011 |
| Physical and mechanical properties | |
| Density | 3.8 g/cm³ |
| Hardness | 18.000N/mm² (Vickers HV 0.5) |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.960 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Silicon nitride - Si3N4 |
| ISO/EN/DIN code | SNCB5 |
| Chemical composition | |
| Element | Share % |
| Al2 O3 Y2 O3 | 9 |
| Si3 N4 | 91 |
| Physical and mechanical properties | |
| Density | 3.25 g/cm³ |
| Hardness | 91.1 HRA |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.070 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.150 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.470 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BOWLS 20 ML VOLUME
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.010 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.050 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Sintered corundum 1 – Al2O3 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Aluminium oxide – Al2O3 | 99.651 |
| Silicon oxide – SiO2 | 0.257 |
| Calcium oxide – CaO | 0.081 |
| Other | 0.011 |
| Physical and mechanical properties | |
| Density | 3.8 g/cm³ |
| Hardness | 18.000N/mm² (Vickers HV 0.5) |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.030 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Silicon nitride - Si3N4 |
| ISO/EN/DIN code | SNCB5 |
| Chemical composition | |
| Element | Share % |
| Al2 O3 Y2 O3 | 9 |
| Si3 N4 | 91 |
| Physical and mechanical properties | |
| Density | 3.25 g/cm³ |
| Hardness | 91.1 HRA |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.100 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.150 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.390 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data

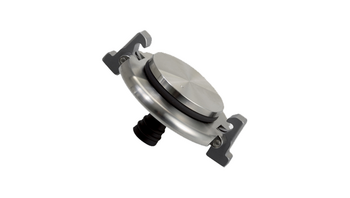

REPLACEMENT SEAL RINGS FOR GRINDING BOWLS PULVERISETTE 7 premium line
Replacement seal ring made of silicone 57.5 x 48 x 2 mm for agate grinding bowls premium line 80 ml, 45 ml, 20 ml volume.
With a fixed flat seal in the lid, the premium line grinding bowl is so tightly sealed that even grinding in suspension without an additional seal is absolutely smooth and problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Silicone |
| Chemical combination of | |
| Element | |
| Silicon - Si | |
| Chloride - Cl | |
| Carbon - C | |
| Hydrogen - H | |
| Oxygen - O | |
| Physical and mechanical properties | |
| Density | 1.1 g/cm³ |
| Hardness | 50 shore A |
Explanations on hardness data
Replacement seal ring made of silicone 57.5 x 48 x 2 mm for all other premium line grinding bowls 80 ml, 45 ml, 20 ml volume.
With a fixed flat seal in the lid, the premium line grinding bowl is so tightly sealed that even grinding in suspension without an additional seal is absolutely smooth and problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.
| General specifications | |
| Material | Silicone |
| Chemical combination of | |
| Element | |
| Silicon - Si | |
| Chloride - Cl | |
| Carbon - C | |
| Hydrogen - H | |
| Oxygen - O | |
| Physical and mechanical properties | |
| Density | 1.1 g/cm³ |
| Hardness | 50 shore A |
Explanations on hardness data
Replacement seal ring made of Viton 57.5 x 48 x 2 mm, for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume.
Due to a fixed flat seal in the lid, the premium line grinding bowl is so tightly sealed that even grinding in suspension without an additional seal is absolutely smooth and problem-free.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton, because they have a much higher chemical resistance.
| General specifications | |
| Material | Viton |
| Chemical composition | |
| Element | Share % |
| Fluorine - F | 66 |
| Carbon - C | 34 |
| Physical and mechanical properties | |
| Density | 1.84 g/cm³ |
| Hardness | 75 shore A |
Explanations on hardness data

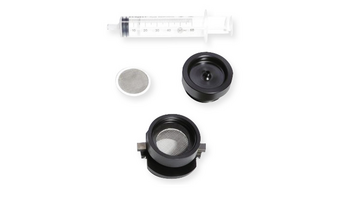

EMPTYING DEVICE AND COUNTERWEIGHT
The emptying device for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume - regardless of the grinding bowl material - enables a quick and easy separation of grinding balls and suspension after the grinding process.
The emptying device can be used for grinding bowls with normal lid as well as for gassing lids.

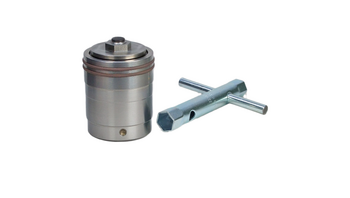

Essential for weight compensation, if only one grinding bowl is used for grinding.
GRINDING BALLS
-
Material data for grinding bowls / balls
Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material Agate SiO2 2.65 good soft to medium-hard samples Sintered corundum Al2O3 (99.7%) 3.8 fairly good medium-hard, fibrous samples Silicon nitride Si3N4 3.25 excellent abrasive samples, metal-free grinding Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples Hardened, stainless steel Fe – Cr 7.7 good hard, medium-hard, brittle samples Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples -
Size of the grinding balls
Type of sample material Suitable ball diameter Hard samples with a maximum feed size of ≤ 5 mm 15 mm / 20 mm Average feed size of 0.5 - 1 mm 15 mm / 10 mm Fine material 0.1 - 0.5 mm 10 mm or smaller Very fine material < 0.1 mm 3 mm and smaller Homogenisation of dry or liquid samples 10 mm or smaller -
Recommended number of grinding balls per bowl
Grinding balls ≥ 5 mm
Recommended number of balls per bowlGrinding bowl/
Useful capacity (grinding material)20 ml
1 – 9 ml45 ml
3 – 20 ml80 ml
10 - 30 mlBalls diameter 20 mm 5 15 mm 7 10 10 mm 10 18 25 5 mm 80 180 250 Grinding balls ≤ 3 mm
Recommended ball mass per bowl in gramsGrinding bowl/
Useful capacity (grinding material)20 ml
1 – 9 ml45 ml
3 – 20 ml80 ml
10 - 30 mlMaterial Zirconium oxide 30 g 70 g 100 g Hardened, stainless steel 40 g 90 g 150 g Hardmetal tungsten carbide 80 g 200 g 300 g -
Additional Information
Grinding balls with diameter 3 mm and smaller must be weighed out. The above table provides you with the required mass per grinding bowl.
The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.
In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.
For achieving best grinding results grinding balls are available in 0.1 - 20 mm diameters and in 7 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion. The recommended number of balls per grinding bowl can be found in the selection aid.
GRINDING BALLS 20 MM DIAMETER FOR GRINDING BOWL 80 ML
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
| General specifications | |
| Material | Sintered corundum 1 – Al2O3 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Aluminium oxide – Al2O3 | 99.651 |
| Silicon oxide – SiO2 | 0.257 |
| Calcium oxide – CaO | 0.081 |
| Other | 0.011 |
| Physical and mechanical properties | |
| Density | 3.8 g/cm³ |
| Hardness | 18.000N/mm² (Vickers HV 0.5) |
Explanations on hardness data
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
| General specifications | |
| Material | Silicon nitride - Si3N4 |
| ISO/EN/DIN code | SNCB5 |
| Chemical composition | |
| Element | Share % |
| Al2 O3 Y2 O3 | 12.5 |
| Si3 N4 | 86.5 |
| Other | 1.00 |
| Physical and mechanical properties | |
| Density | 3.25 g/cm³ |
| Hardness | 91.1 HRA |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BALLS 15 MM DIAMETER FOR GRINDING BOWL 80 ML, 45 ML
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
| General specifications | |
| Material | Sintered corundum 1 – Al2O3 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Aluminium oxide – Al2O3 | 99.651 |
| Silicon oxide – SiO2 | 0.257 |
| Calcium oxide – CaO | 0.081 |
| Other | 0.011 |
| Physical and mechanical properties | |
| Density | 3.8 g/cm³ |
| Hardness | 18.000N/mm² (Vickers HV 0.5) |
Explanations on hardness data
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
| General specifications | |
| Material | Silicon nitride - Si3N4 |
| ISO/EN/DIN code | SNCB5 |
| Chemical composition | |
| Element | Share % |
| Al2 O3 Y2 O3 | 12.5 |
| Si3 N4 | 86.5 |
| Other | 1.00 |
| Physical and mechanical properties | |
| Density | 3.25 g/cm³ |
| Hardness | 91.1 HRA |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BALLS 10 MM DIAMETER FOR GRINDING BOWL 80 ML, 45 ML, 20 ML
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Grinding balls made of agate with 10 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 10 pieces.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
| General specifications | |
| Material | Sintered corundum 1 – Al2O3 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Aluminium oxide – Al2O3 | 99.651 |
| Silicon oxide – SiO2 | 0.257 |
| Calcium oxide – CaO | 0.081 |
| Other | 0.011 |
| Physical and mechanical properties | |
| Density | 3.8 g/cm³ |
| Hardness | 18.000N/mm² (Vickers HV 0.5) |
Explanations on hardness data
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
| General specifications | |
| Material | Silicon nitride - Si3N4 |
| ISO/EN/DIN code | SNCB5 |
| Chemical composition | |
| Element | Share % |
| Al2 O3 Y2 O3 | 12.5 |
| Si3 N4 | 86.5 |
| Other | 1.00 |
| Physical and mechanical properties | |
| Density | 3.25 g/cm³ |
| Hardness | 91.1 HRA |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BALLS 5 MM DIAMETER FOR GRINDING BOWL 80 ML, 45 ML, 20 ML
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
100 grinding balls made of agate with 5 mm dia. weigh approx. 17 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
Grinding balls made of agate with 5 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 15 pieces.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
100 grinding balls made of hardmetal tungsten carbide with 5 mm dia. weigh approx. 97 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BALLS ≤ 3 MM DIAMETER FOR GRINDING BOWL 80 ML, 45 ML, 20 ML
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 2 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 1.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 0.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
SPECIAL ACCESSORIES
The software MillControl enables the automatic control of the Planetary Micro Mill PULVERISETTE 7 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. With the utilization of 2 EASY GTM grinding bowls with special lid and transmitter you turn your PULVERISETTE 7 premium line into an analytical measuring system for visualizing pressure and temperature during the grinding process.

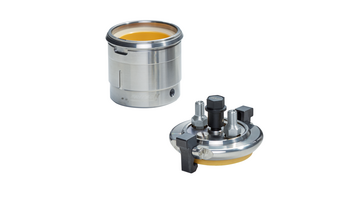

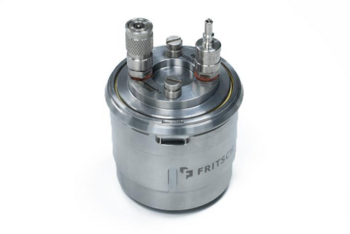

For quickly and safely grinding in inert gas and for mechanical alloying premium line gassing lids are recommended.

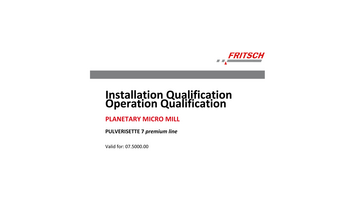

A certificate for IQ/OQ documentation is also available.
SOFTWARE MILLCONTROL
The software MillControl enables the automatic control of the Planetary Micro Mill PULVERISETTE 7 and Planetary Mill PULVERISETTE 5 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. The software is a distinct safety feature, since overpressure and a rise in temperature are avoided and defects on the mill and a sticking of the sample material prevented.
Detailed information on MillControl is available here
EASY GTM - GAS PRESSURE AND TEMPERATURE MEASURING SYSTEM FOR CONTROLLING THE GRINDING PROCESS
Turn your Planetary Mill PULVERISETTE 5 premium line and Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software.
Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
Especially practical: The receiver unit needs only to be inserted and adjusted just once – the software MillControl via USB only installed once - regardless of the number of EASY GTM-bowls used.
Only one receiver unit with software MillControl has to be ordered. EASY GTM is also available for further grinding bowl volumes on request.

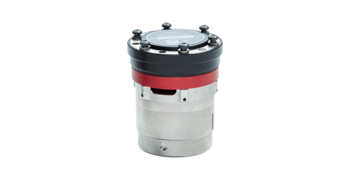

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature
Turn your Planetary Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in sintered corundum, silicon nitride, zirconium oxide, stainless steel, hardened steel and hardmetal tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.
Only one receiver unit with software MillControl has to be ordered.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data

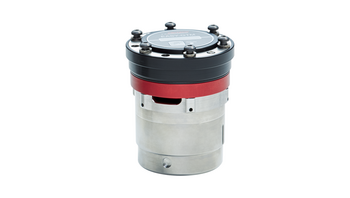

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature
Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in agate, silicon nitride, zirconium oxide, stainless steel, hardened steel and hardmetal tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.
Only one receiver unit with software MillControl has to be ordered.
| General specifications | |
| Material | Sintered corundum 1 – Al2O3 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Aluminium oxide – Al2O3 | 99.651 |
| Silicon oxide – SiO2 | 0.257 |
| Calcium oxide – CaO | 0.081 |
| Other | 0.011 |
| Physical and mechanical properties | |
| Density | 3.8 g/cm³ |
| Hardness | 18.000N/mm² (Vickers HV 0.5) |
Explanations on hardness data
for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature
Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in agate, sintered corundum, zirconium oxide, stainless steel, hardened steel and hardmetal tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.
Only one receiver unit with software MillControl has to be ordered.
| General specifications | |
| Material | Silicon nitride - Si3N4 |
| ISO/EN/DIN code | SNCB5 |
| Chemical composition | |
| Element | Share % |
| Al2 O3 Y2 O3 | 9 |
| Si3 N4 | 91 |
| Physical and mechanical properties | |
| Density | 3.25 g/cm³ |
| Hardness | 91.1 HRA |
Explanations on hardness data
for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature
Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in agate, sintered corundum, silicon nitride, stainless steel, hardened steel and hardmetal tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.
Only one receiver unit with software MillControl has to be ordered.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature
Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in agate, sintered corundum, silicon nitride, zirconium oxide, hardened stainless steel and hardmetal tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.
Only one receiver unit with software MillControl has to be ordered.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature
Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in agate, sintered corundum, silicon nitride, zirconium oxide, stainless steel and hardened steel with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.
Only one receiver unit with software MillControl has to be ordered.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
ACCESSORIES FOR GRINDING IN INERT GAS AND FOR MECHANICAL ALLOYING - GASSING LID WITH VALVES AND SEAL RING
Agate gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
Sintered corundum gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | Sintered corundum 1 – Al2O3 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Aluminium oxide – Al2O3 | 99.651 |
| Silicon oxide – SiO2 | 0.257 |
| Calcium oxide – CaO | 0.081 |
| Other | 0.011 |
| Physical and mechanical properties | |
| Density | 3.8 g/cm³ |
| Hardness | 18.000N/mm² (Vickers HV 0.5) |
Explanations on hardness data
Silicon nitride gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | Silicon nitride - Si3N4 |
| ISO/EN/DIN code | SNCB5 |
| Chemical composition | |
| Element | Share % |
| Al2 O3 Y2 O3 | 9 |
| Si3 N4 | 91 |
| Physical and mechanical properties | |
| Density | 3.25 g/cm³ |
| Hardness | 91.1 HRA |
Explanations on hardness data
Zirconium oxide gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
Hardened, stainless steel gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
Hardmetal tungsten carbide gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
ACCESSORIES FOR SINGLE-USE TECHNOLOGY
The grinding bowl made of stainless steel with 6 sample glasses 1.5 ml volume is suitable for single-use technology, for example in pharmacy, forensics and pathology, RNA/DNA extraction, bacteriology, chemistry.
Additionally, a set of sample glasses 1.5 ml volume with lids (set = 12 pieces) is available with order no. 83.3165.00.
| General specifications | |
| Material | Stainless steel – 1.4057 |
| ISO/EN/DIN code | X17CrNi16-2 |
| AISI code | 431 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | 77.7–80.8 |
| Carbon – C | 0.12–0.22 |
| Silicon – Si | ≤ 1.0 |
| Manganese – Mn | ≤ 1.5 |
| Chromium – Cr | 15–17 |
| Nickel – Ni | 1.5–2.5 |
| Phosphorus – P | ≤ 0.04 |
| Sulphur – S | 0.015 |
| Physical and mechanical properties | |
| Density | 7.7g/cm³ |
| Hardness | 295 HB |
Explanations on hardness data
The set of sample glasses 1.5 ml volume with lids (set = 12 pieces) is suitable for single-use technology, for example in pharmacy, forensics and pathology, RNA/DNA extraction, bacteriology, chemistry.
In order to use the sample glasses for your PULVERISETTE 7 premium line, please order the corresponding grinding bowl made of stainless steel, order no. 50.9506.00.
CERTIFICATION
IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Planetary Micro Mill PULVERISETTE 7 premium line.
